Product description

The KW-20-750 is a miniature lifting device designed for use in basements below municipal sewer lines or on the same floor without sewer lines.

Suitable for discharge of domestic sewage produced by back-row toilet, shower bathroom, wash hand basin, bar sink, air-conditioning condensate water, power supply is 220V.

KW series box is corrosion-resistant and environmentally friendly polyethylene PE

Material, good sealing, durable, the box volume is about 20L, a plurality of horizontal water inlet is reserved for easy installation.

Performance parameter

The water pump is a non-blocking vortex impeller with a power of 0.75KW

Pump body material HT250, SUS304

Vortex impeller material HT250 pump shaft material SUS410

Maximum overcurrent diameter 35mm

Maximum startup times of water pump 60 times/hour

The cable length between the standard controller and the water pump/float is 5 meters

DN40 check valve included

Outlet Pipe Diameter DN40 Vertical outlet (variable diameter)

Starting mode: pressure/float double liquid level control, double protection

Waterproof grade of the whole machine: IP68 (excluding control box)

Controller characteristics

Water pump no-load protection/water pump overload protection/high anti-interference performance

High alarm strong start power/simple operation

Manual/automatic switch/automatic inspection function

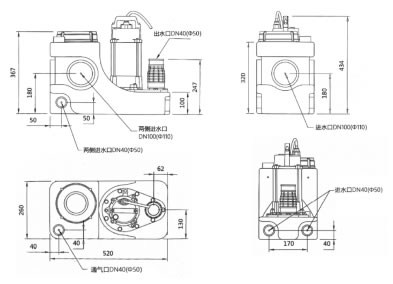

Product size drawing
